The hook loader frame with stanchions is compatible with the roll on/off loaders available on the market (e.g. Scale-Art®) at a 1/14.5 scale. If necessary, the locking mechanism can be screwed in different positions so that the frame is compatible with various carrier systems.
Thanks to the four variably positioned stanchions, timber, pipes as well as "packages" can be loaded with different lengths. The massive protection grille at the front ensures a safe hold of the goods to the front and protects the driver's cab.

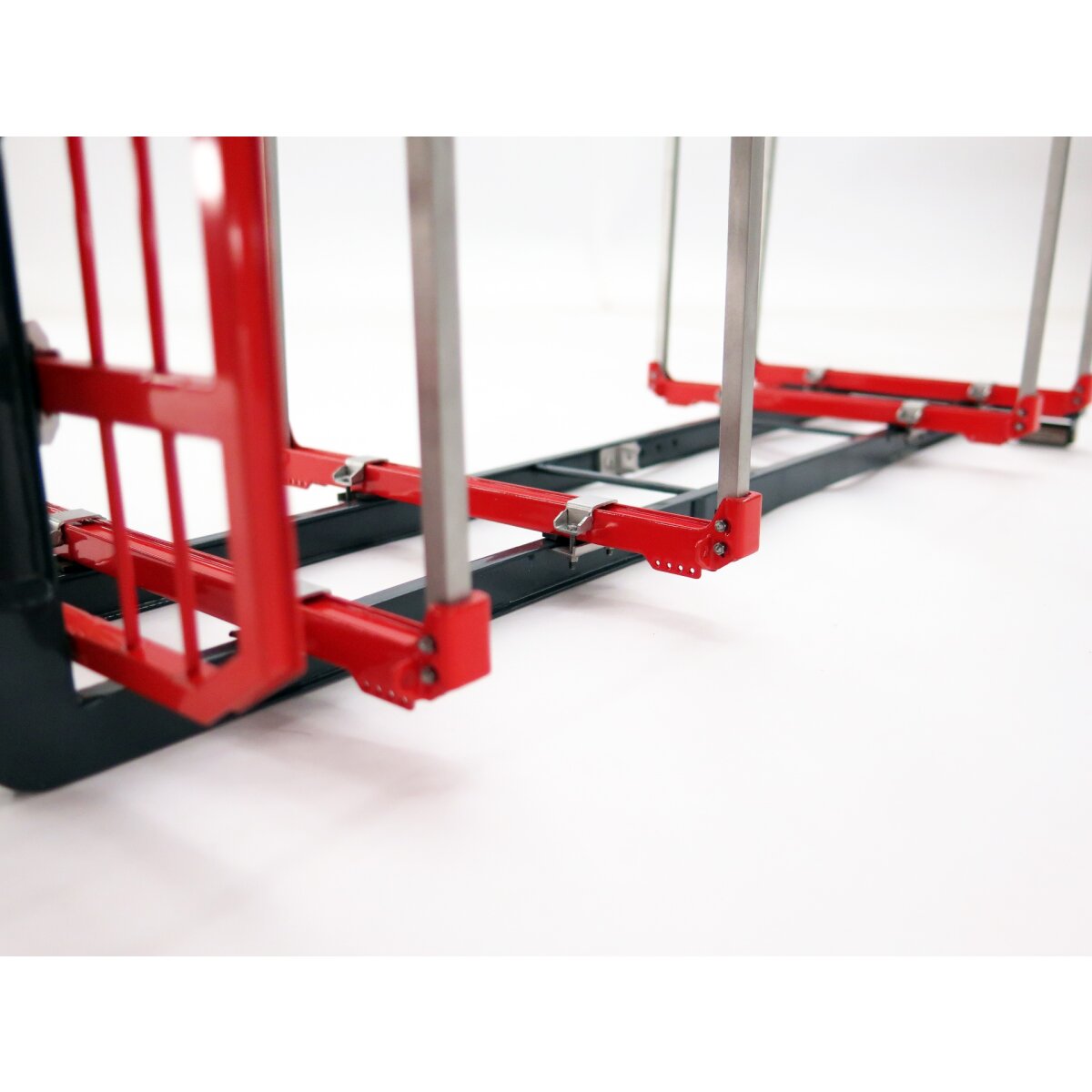

The solid welded steel frame made of I-beams with various doublings is based on DIN 30722 and scaled exactly to 1/14.5. According to this standard, superstructures for hook loader frames are designed in the original. The stanchions offer a (L) 428 x (B) 153 x (H) 142 mm large load volume. Each of the four stanchions has two eyelets on each side, to which straps can be attached to secure the load. Front grille and stanchions are connected to the base frame by means of displaceable clamping units as in the original and can be arranged individually in their position. The vertical parts of the stanchions as well as the clamp units are made of stainless steel and are not painted or powder coated. M1.6 hexagon head screws made of steel are used as screw connections.
As play scenarios, there are exciting challenges for single-item handling, construction sites or forestry operations. The hook loader frame can be loaded or unloaded over the sides, for example with the wooden gripper of a wheel loader or from the top with a loading crane. This means that the hook loader frame offers an enormous potential for use in conjunction with other models.
- Frame: 1. selected Colour
- Crossmembers + protective grille: 2. selected Colour
- Stanchions: blank stainless steel
All assemblies are finished and, depending on the choice, painted or prepared for painting (sandblasted). Stanchions, front grille and other add-on parts have to be mounted. Of course, all screws, small parts and a detailed manual are included.
This product variant is completely built up.
- All frame parts: steel / stainless steel
- Crossmebers and protection grille: steel / stainless steel
- Stanchions: stainless steel
- Clamping units: stainless steel
- Rollers: steel / stainless steel
- Axles: fine casted alpaca
(L) 450 x (B) 168 x (H) 179mm
Scope of delivery:
- base frame
- 4 crossmembers with 3 stakes each
- protective grille
- assembly instructions
